◆ Application of smart drying technology: automatic materials loading, automatic circulation, automatic temperature control and automatic alarm.
◆ Specialized drying: rice, corn, soybean, sorghum, barley, wheat and other corns.
tel：024-85856600 85856699
Watch Video
Details
Instructions

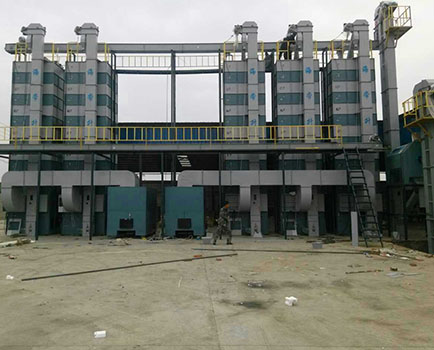

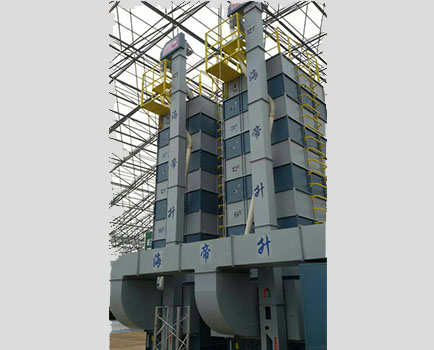

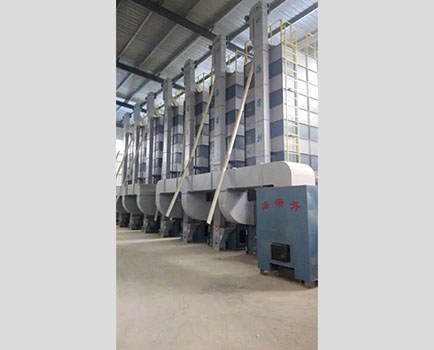

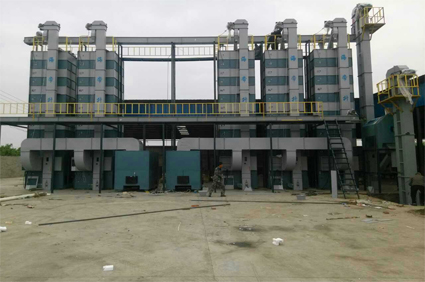

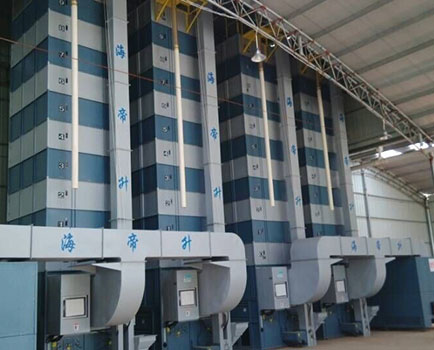

Case
ConsultationThe grain dryer developed by LIAONING HIDEAR SHENG MACHINERY CO., LTD with efforts for years can dry multiple corns, including rice, corn, barley and wheat. The dryer adopts advanced technology, has high automation, is easy to operation, has reliable performance, small noise, weak vibration, short drying duration, and saves the fuel and energy remarkably. The practice has proved that, it can save energy by about 20-25% compared with other equipment with the same drying capacity.
Such dryer has wide application scope, is convenient to combine and can set different drying sections as per different moisture elimination level of grain to meet the requirements on moisture elimination and output. The equipment has low crackle ratio and can be used to dry seeds to enhance the economic benefit.
|
Item |
Basic configuration and technical parameters |
|
Model |
HDS-L8000D-Y |
HDS-L10000D-Y |
HDS-L12000D-Y |
HDS-L15000D-Y |
|
|
Processing capacity (kg/ time) |
8000 |
10000 |
12000 |
15000 |
|
|
Overall dimensions
|
Length (mm) |
3636 (base size 2060) |
|||
|
|
width (mm) |
2190（base size 2060） |
|||
|
|
Height (mm) |
8080 |
8625 |
9715 |
10805 |
|
Overall weight (kg) |
2600 |
2800 |
3000 |
3200 |
|
|
Ventilator |
Form |
Diagonal flow type |
|||
|
|
Diameter (mm) |
750 |
|||
|
|
Number of revolutions (rpm) |
1450 |
|||
|
Heat supply method |
Form |
Lance type burner/hot air/steam heat exchange |
|||
|
Fuel |
Diesel/coal, rice chaff, biamass |
||||
|
Rated voltage (V) |
Single phase 220/ three phases 380 |
||||
|
Max. power (kW) |
9.07 |
||||
|
Performance |
Materials loading time (min) |
30-35 |
40-45 |
45-50 |
60-65 |
|
|
Materials discharge time (min) |
30-35 |
40-45 |
45-50 |
60-65 |
|
|
Moisture elimination rate (%/h) |
0.6-1.0 |
|||
|
|
(min)Single circulation time (min) |
30-35 |
40-45 |
45-50 |
60-65 |
Hot blast stoveLearn moreThe hot blast heater is researched and designed according to the combustion characteristics of biomass, e.g., rice shell, straw and cavings, etc. After combustion, the clean air is generated through heat exchange. Then, the drying is conducted. It has superior performance and can use various renewable energies. Multiple granular or powdered fuels, e.g., rice shell, straw, sawdust and coal, can be fully combusted at semi-floating state. Its hot air efficiency can reach 70% above and it can realize automatic, semi-automatic production operation.
The application of biomass fuel not only protects the environment but also saves costs. Moreover, it is easy to operate and has excellent effect.
